0.5 - 10mm Thickness Sintered Filter Cartridge Round Disc Sheet Tube Cartridge Form

Name: 0.5 - 10mm Thickness Sintered Filter Cartridge Round Disc Sheet Tube Cartridge Form
Brand: changsheng
SKU: None
Price: 20 USD
Availability: InStock
Rating: 4.5 (176 reviews)

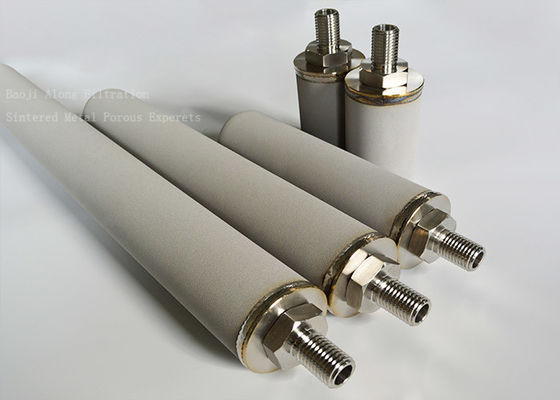

Large Image : 0.5 - 10mm Thickness Sintered Filter Cartridge Round Disc Sheet Tube Cartridge Form

Product Details:

Place of Origin:	Baoji, China
Brand Name:	changsheng
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	USD20-100
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Type:	Candle, Plate, Disc
Usage:	Gas Filter	Filter Rating:	0.5-100 Micron
After-Sales Service:	Online-Support	OEM/ODM:	Available
Application:	Chemical, Oil, Gas, Water	Diameter:	1-10inch
End Cap:	Threaded, Flange, Welded	Filter Media:	Stainless Steel Mesh, Stainless Steel Fiber
Filter Type:	Sintered Filter Cartridge	Max. Operating Pressure:	10bar
Max. Operating Temperature:	200℃	Filter Efficiency:	99.9%
Inner Diameter:	28mm	Max Differential Pressure:	2.5 Bar
Max Flow Rate:	10m3/h	Max Operating Pressure:	10 Bar
Operating Temperature:	0-100°C	Outer Diameter:	68mm
Surface Treatment:	Polishing
Highlight:	Chemical Sintered Filter Cartridge , Sintered Filter Cartridge Tube 10mm

0.5um Sintered Filter Cartridge High Dirt Load Capacity Excellent Unloading Strength

Material	Filter Rating	Porosity	Penetrability	Working pressure	Operating temperature	Shape	specific surface area
304,304L,316,316L Stainless steel powder	0.5um-70um	30-45%	3-1300M³/M²hKPa	3.0MPa	600℃	Round Disc, Sheet, Tube, Round Bar, cap.	10-40cm²/cm³

Production	(Diameter)Length	(Diameter)Width	Thickness	Customized
Sintered porous round discs	φ5-φ300mm	φ5-φ300mm	0.5-10mm	Yes
Sintered porous sheets	5-300mm	5-300mm	0.5-10mm	Yes
Sintered porous tubes	100-1200mm	φ20-φ200mm	1-10mm	Yes
Sintered porous cartridge	100-1200mm	φ20-φ200mm	1-10mm	Yes

0.5 - 10mm Thickness Sintered Filter Cartridge Round Disc Sheet Tube Cartridge Form 0

Properties of stainless steel sintered porous materials:

High-temperature resistance, in normal use under 500 ℃.
High mechanical strength, good plasticity, can be machined.
Corrosion resistance, oxidation resistance, can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.
Good molding process, according to customer drawings for processing a molding.
High filtration precision and good purification effect.
The pores are uniform, the internal structure is stable, and no particles fall off.
Good air permeability, easy to back blow cleaning, can be used repeatedly online regeneration.
Wear resistance and impact resistance, good mechanical properties.

Application of stainless steel sintered porous materials

According to its physical and structural characteristics, stainless steel sintered porous materials are mostly used in the fields of noise elimination, filtration and separation, fluid distribution, flow-limiting, capillary core and so on.

The chemical raw material production process in addition to impurity filtration, material decarburization filtration, and fine filtration.
Ultrafiltration, RO, EDI system security filtration in water treatment.
The food and beverage industry finished product clarification filtration.
Filtration and recovery of the precious metal catalyst in the petrochemical industry.
Precision filtration of liquid raw materials, products and pharmaceutical intermediates in the chemical industry.
Reverse osmosis security filtration in the field of water injection filtration.
Gas purification of steam, compressed air deoiling purification.
Medium purification and flow limitation for pneumatic components, lubricants, fuels, and hydraulic pressure systems.
Chemical dye industry of high - temperature decarburization.

Precautions for the use of stainless steel sintered porous materials

During installation, disassembly and clean avoid scratches, collisions and falls on hard objects.
When using, the filtrate is filtered from the outside in to avoid the reverse direction.
Avoid instant pressurization when the filter element works.
When the filtration efficiency is less than 50%, the filter element should be cleaned in time.
When cleaning the filter element, the first backflow with pure gas, back blow pressure is 1.5 times the working pressure, each time for 3-5 seconds, and 4-6 times, then backwash with clean liquid for 3-5 minutes, repeat 2-3 times.
If the filter element is not good after online back blowing and backwashing, it should be removed and cleaned in time.
