PEM Electrolysers Titanium Electrode Porous Metal Plate

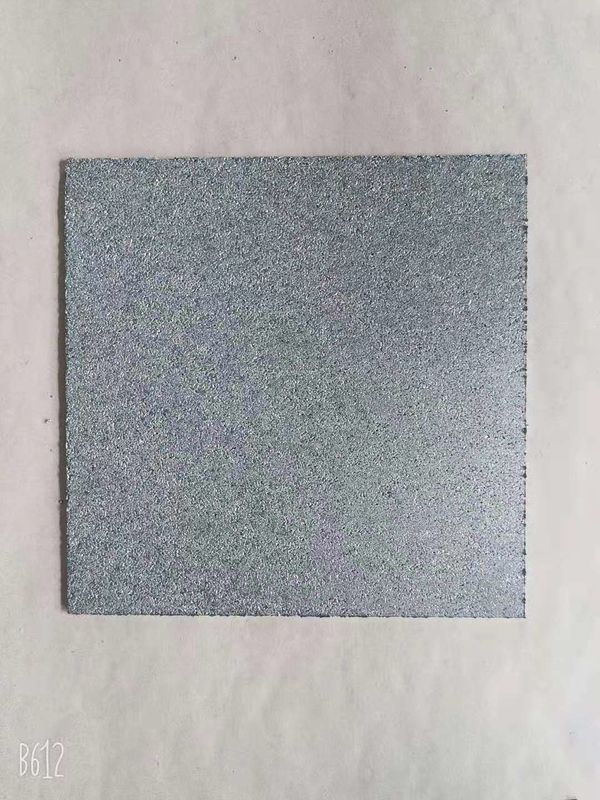

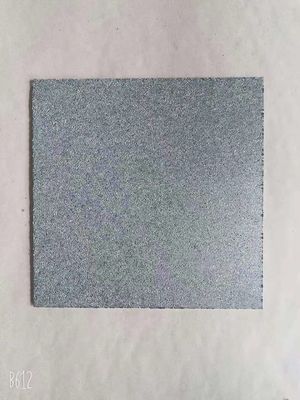

Large Image : PEM Electrolysers Titanium Electrode Porous Metal Plate

Product Details:

Place of Origin:	Baoji, China
Brand Name:	Along
Certification:	SGS, ISO
Model Number:	None

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Packaging Details:	Vacuum Packaging+Wooden Case, Vacuum Packaging+Carton Case
Delivery Time:	5-10 Days
Payment Terms:	T/T, L/C, PayPal, Alibaba Secure Payment
Supply Ability:	2000PCS/Month

Contact Now

Detailed Product Description

Material:	Gr1 Pure Titanium Powder	Size:	1000*300 Max
Technique:	Sintering, Powder Sintered, Porous Sintered	Type:	Plate/sheet
Working Pressure:	2.5-3.0Mpa	Application:	High Temperature Steam And Gas Filtration
Highlight:	Electrode Porous Metal Plate , PEM Electrolysers Porous Metal Plate , Titanium Porous Metal Plate

Sintered Porous Titanium Electrode Plate PEM Water Electrolyser And PEMFC Gas Transport Layer

1. Porous titanium Function
The porous titanium has a uniform structure and a large number of open pores. It is mainly used as a filter element, with low filtering resistance, long service life, high mechanical strength, and easy regeneration.
Mainly used in liquid filtration, sterilization filtration in the beverage, food, and brewing industries; industrial acid-base liquid filtration, alcohol recovery and other industries various chemical liquid filtration, large infusion, powder injection, water injection decarbonization filtration, various gas vapors, etc. filter. The service life is longer than that of easy-to-damage sieve filters, ceramic filters and cloth material filters.

2. Specification of titanium sintered porous materials

PEM Electrolysers Titanium Electrode Porous Metal Plate 0

3. Physical properties of porous titanium materials

Material	Filter Rating	Porosity	Penetrability	Working pressure	Operating temperature	Shape	specific surface area
Pure Titanium powder	5um-80um	25-45%	3-800M³/M²hKPa	2.5MPa	300℃	Round disc,sheet,tube,round bar,cap	10-40cm²/cm³

4. Properties of titanium sintered porous filter materials:

Controllable pore size and porosity, high filtration precision.
Good permeability, small initial pressure difference
Good mechanical properties, can be filter press filtration, easy to operate.
No particles fall off, no secondary contamination of the original solution, in line with the requirements of food hygiene and pharmaceutical GMP.
Good mechanical properties, low differential pressure, large flow.
Large flow and high precision,

5.Application of titanium sintered porous materials

Titanium sintered porous materials are mostly used for filtering materials,electrodes,heat transfer materials,catalyst carrier materials,noise cancelling materials according to their physical and structural properties.
